Trailer Style Drop Tower Rides

Trailer  Style Drop Tower Rides is no base mobile amusement equipment, the traditional base style drop tower rides is integrated into an all-in-one trailer, the tower body can be hydraulically folded to shrink, the tractor is directly towing, is a mobile carnival, mobile amusement park dedicated amusement equipment, both with rotation, lifting,and rapid descent.

Core structure: trailer+folding tower body integrated

1.Trailer chassis with built-in traction

The overall base is a heavy-duty steel trailer; During transportation, retract the legs and connect the trailer to a truck for towing onto the road.

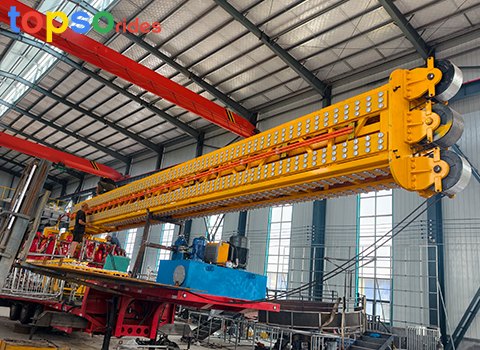

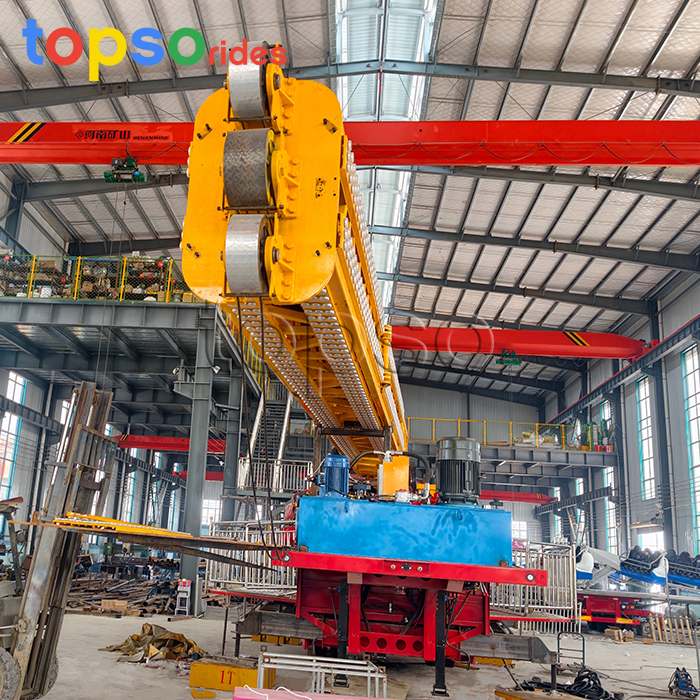

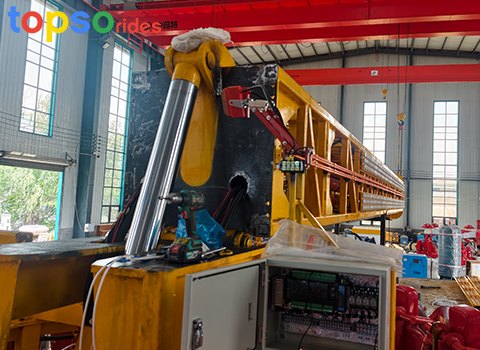

2.Fully automatic hydraulic folding tower body

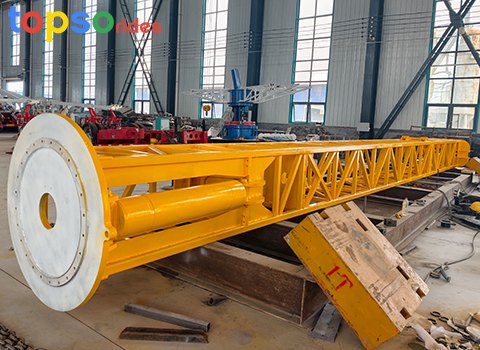

Segmented articulated hydraulic cylinders for tower columns, automatic folding and lowering; After arriving at the new site, use the hydraulic to erect the tower, unfold the guardrail, and connect the power to start operating.

3.All integrated accessories are built-in

The control cabinet, lighting system, protective fence, and passenger stairs are all folded and stored in the trailer frame, without the need for additional trucks to pull accessories.

Mainstream specifications and models (commonly used trailer models in the market)

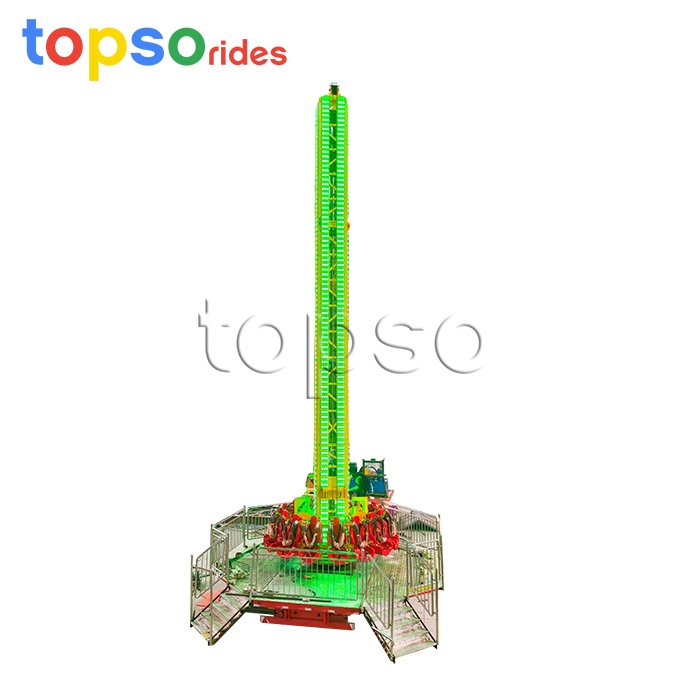

1.Total height: 17m, the height of the tower 14m

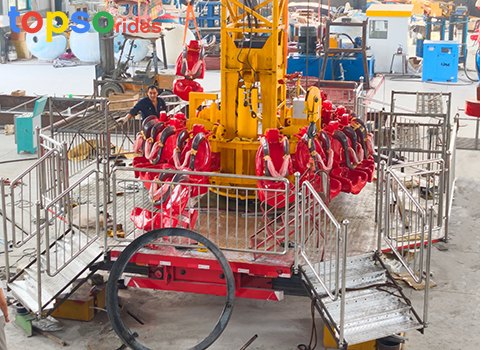

2.Passenger capacity: 12/16 seats, strong visual impact

3.Land occupation: 10m x 14m

4.Fully hydraulic automatic folding, widened support legs, stronger outdoor wind stability

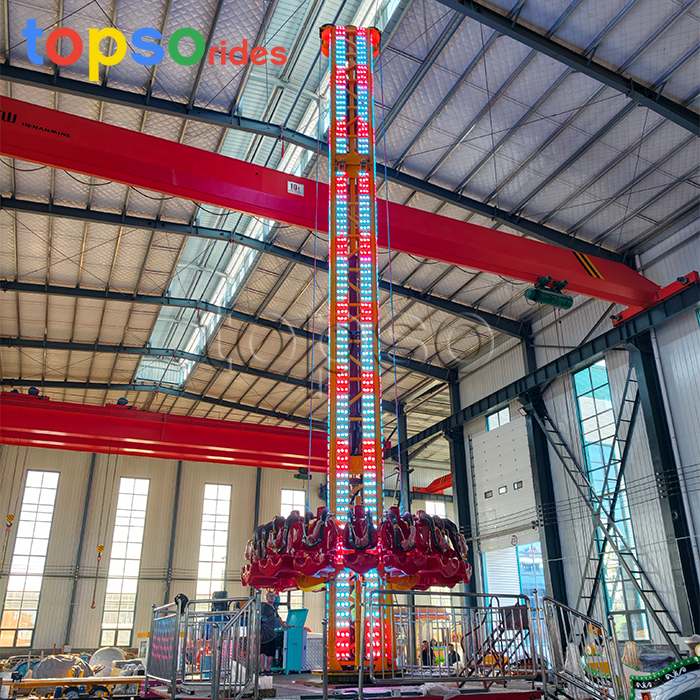

5.Standard configuration includes full tower flowing LED lights and dynamic background music system

Core advantages (compared to the foundation style drop tower rides)

1.Zero infrastructure

Equipped with an integral load-bearing chassis, there is no need to build a cement foundation. It can be placed on a temporary site with crushed stones/steel plates, and there will be no site damage when exiting.

2.Extremely low transportation costs

The folding and integrated transportation of the tower body eliminates the need for cranes and a large amount of manual labor for disassembly and assembly. The operator can operate the hydraulic system to complete the tower erection/retraction.

3.Different business locations

Can be used for touring carnivals and multi venue reuse.

4.Multiple security measures

Hydraulic buffer cylinder, multiple load-bearing steel wire ropes, dual locking of seat pressure rod and safety belt, height limit, automatic power-off locking.

5.Strong nighttime drainage attribute

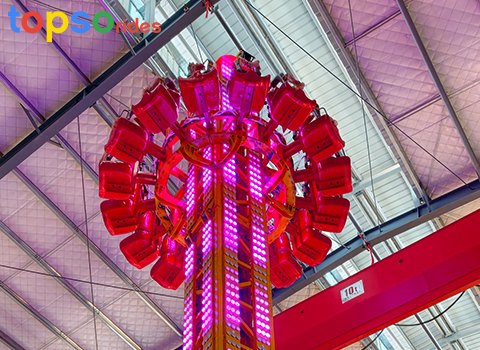

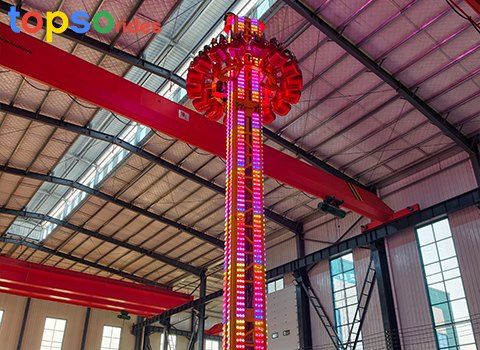

The tower is equipped with LED lights, and when rotating and lifting, the tower’s lighting effect is prominent, with a much higher ability to attract passengers at night than ordinary amusement equipment.

Basic operation process

1.Pull the trailer to the site, lower multiple support legs to level it, and keep the entire trailer level;

2.Start the hydraulic system, automatically erect the folding tower body and lock it;

3.Unfold the folding protective barrier and the up and down steps;

4.Connect the 380V power supply, adjust the speed, lifting height, lighting and music;

5.Reverse operation after business closure: retract guardrail → hydraulic folding tower body → retract support legs → drag away directly.

Trailer Style Drop Tower Rides is an exciting trailer mounted amusement equipment. If you operate a mobile amusement park, you can definitely invest in one set, which will bring you substantial profits.
